THE CHALLENGE

We participate in the Polar project developed in Adisseo, world leader in the animal nutrition industry, together with TechnipFMC engineering and aimed at the consolidation of the Adisseo plant in Burgos.

The factory that produces liquid methionine, seeks to consolidate its reliability by guaranteeing safety at all levels and contributing to its mission to feed the planet through the Polar project.

The cooling project: creation of new process units and adaptation of the facilities and the expansion of the cooling of the production processes with two new TORRAVAL cooling towers.

THE RESULT

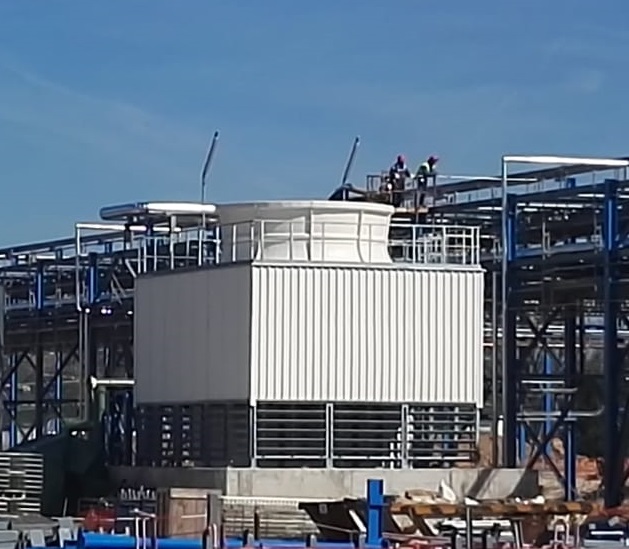

TORRAVAL expands an existing 3-cell cooling tower by adding one more, while supplying another single-cell tower. Both with the following characteristics:

  • GRP exterior enclosure, prevents water and air leaks and resists wind load.
  • Laminar filler made of PVC sheets for clean water. This design improves the cooling effect.
  • Galvanised steel structure.
Galvanized steel
  • Droplet separators covering the entire inner surface of the tower with a double zigzag design, limiting carry-over losses to less than 0.05% of the circulating flow. The slats form removable panels that facilitate access to the water distribution system.
  • Independent distribution system in each cell in PVC
  • Diffuser with a Venturi-type design profile on top that minimizes pressure loss.
  • Axial fans with a maximum peripheral speed of 60 m/s. The fan blades have aerodynamic profile, made of FRP. The blade angle can be adjusted manually.
  • Floating transmissions with flexible couplings by means of stainless steel plates, and spacer in galvanized steel, do not require any kind of lubrication.
  • Mechanical equipment mounted on galvanized steel supports, resist operating loads, minimize vibrations and ensure perfect equipment alignment.
  • Access from the ground to the deck via a cat staircase. Each cell is provided with an access door to the interior for easy inspection.

CUSTOMER BENEFITS

  • Access security.
  • Easy and accessible maintenance.
  • Corrosion-resistant structure and internal components
Cooling Tower TORRAVAL
